AI-Powered Visual Inspection for Semiconductor Manufacturing
DeepInspect®- Semiconductor surface defects detection software for Electronics Manufacturers
Semiconductor manufacturing requires precise wafer defect inspection to maintain high yield and reliability. DeepInspect® enables AI visual inspection for semiconductors, accurately detecting surface, pattern, and interconnect defects that traditional systems miss. Its automated semiconductor inspection system adapts to complex lithography patterns, reflective materials, and micron-level features. From semiconductor defect detection at the wafer and die level to final package checks, DeepInspect delivers real-time insights with minimal training data. By improving semiconductor quality inspection across front-end and back-end processes, DeepInspect® helps fabs and OSATs reduce defects, boost yield, and achieve consistent production quality at scale.
USECASE
Defects Detected by DeepInspect®
DeepInspect® detects all defects, such as
Computer vision defect detection for semiconductors

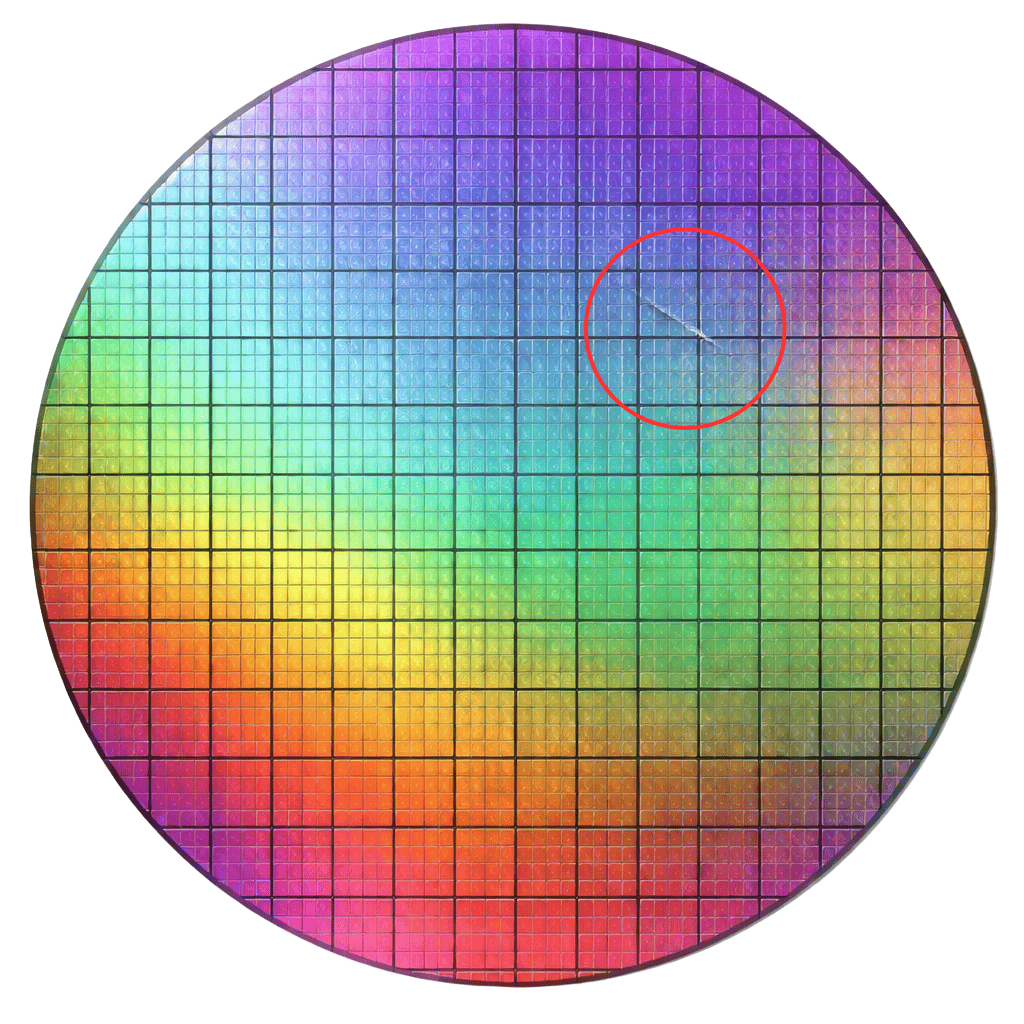

Defects on
Silica Wafers

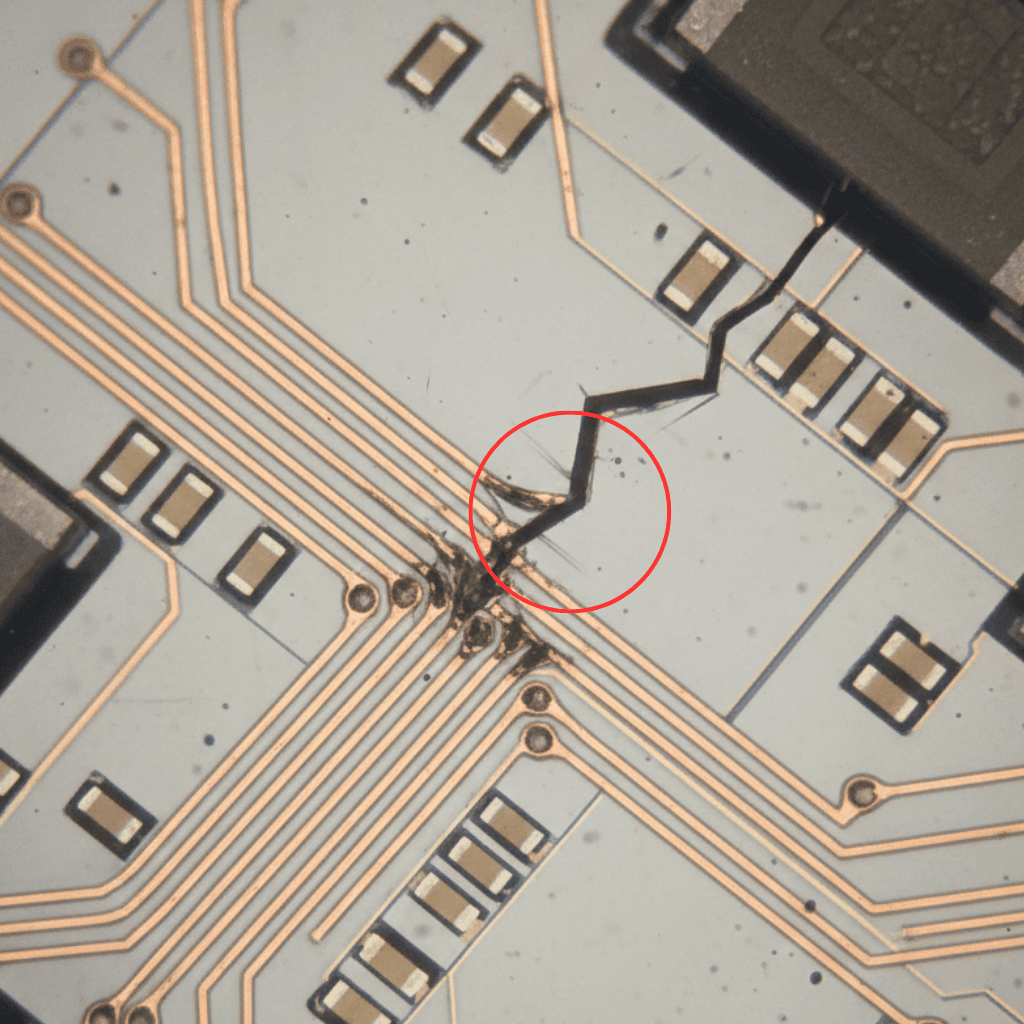

Defects on
Dyes

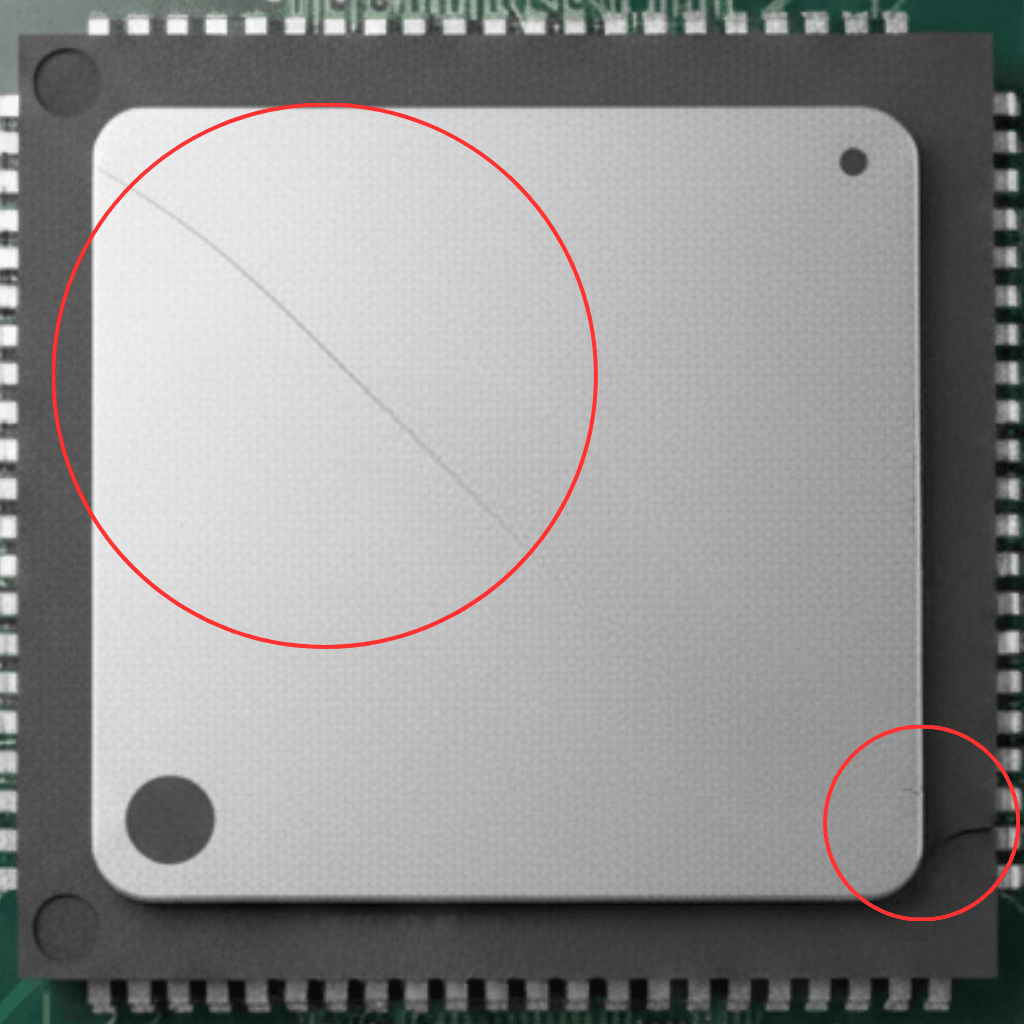

Defects in Semiconductor Packaging

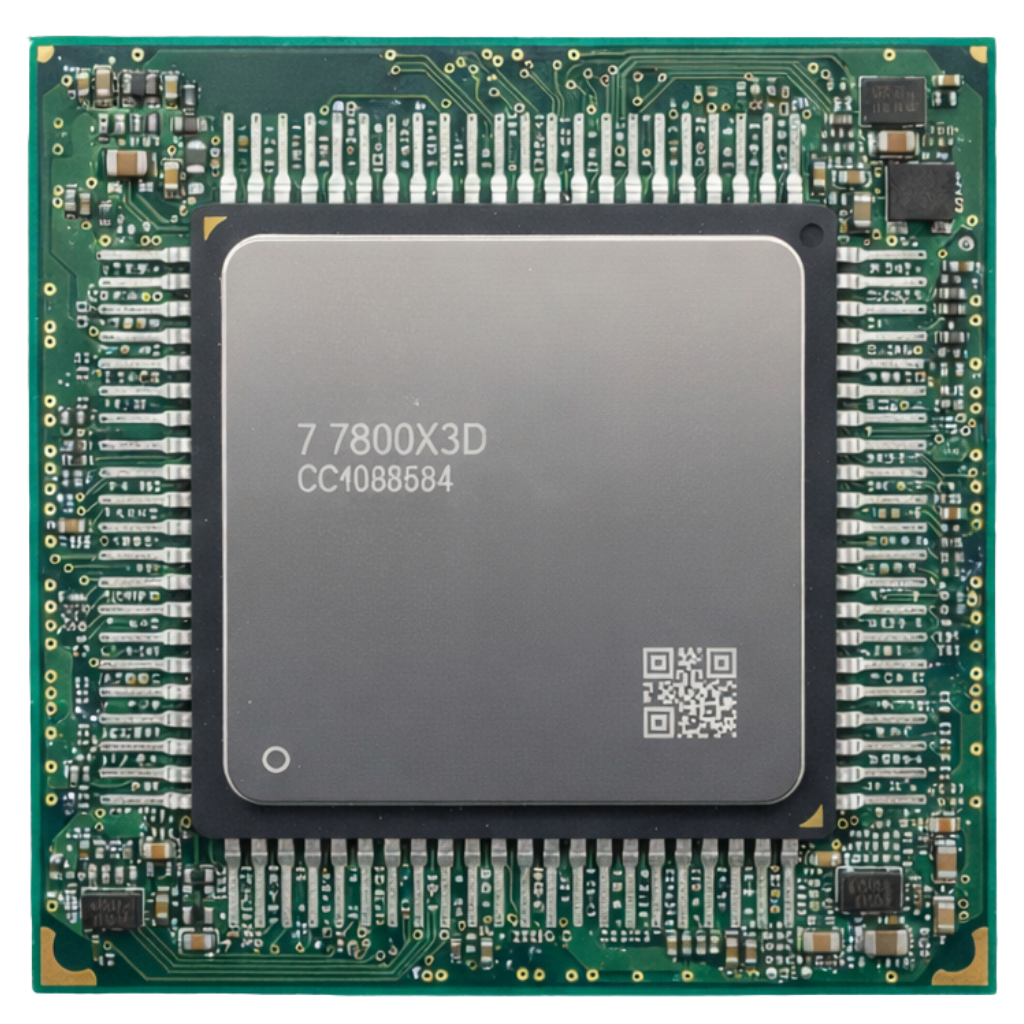

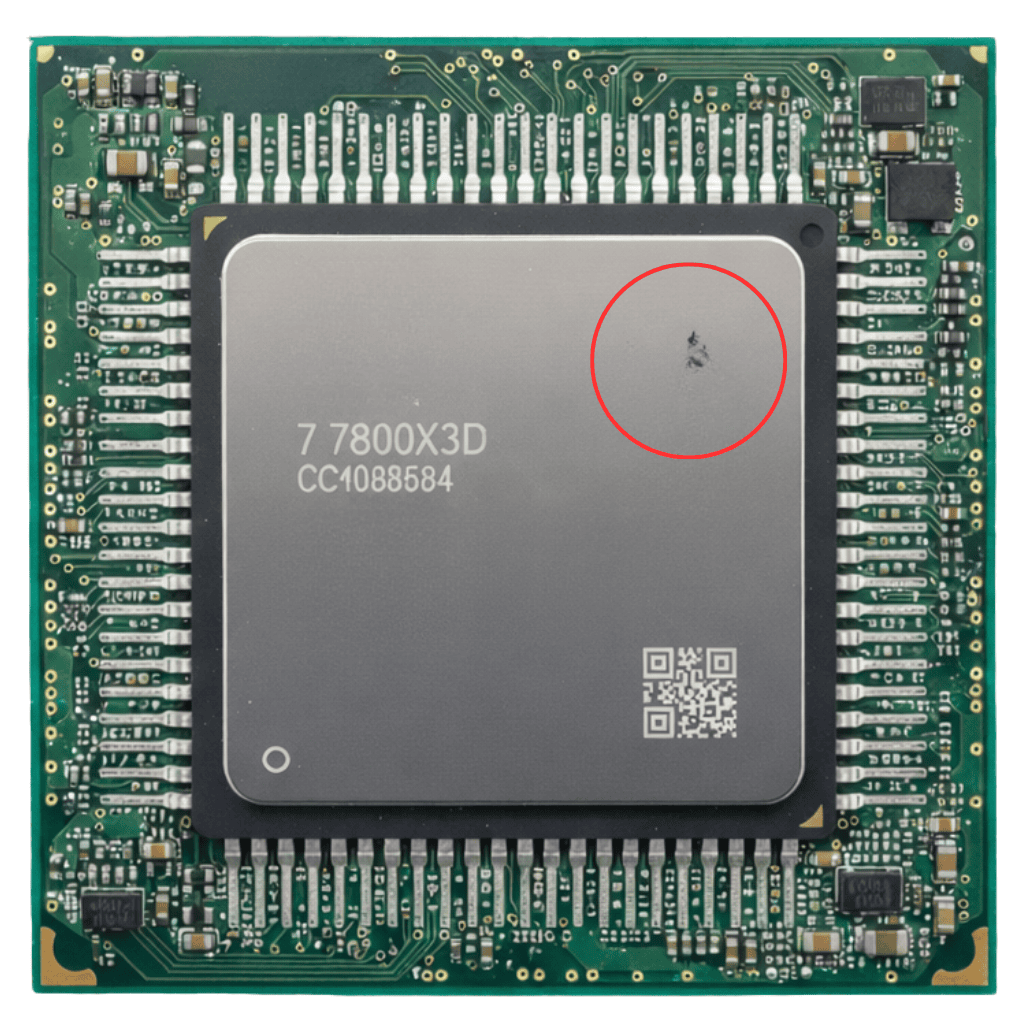

Defects on Final Semiconductor

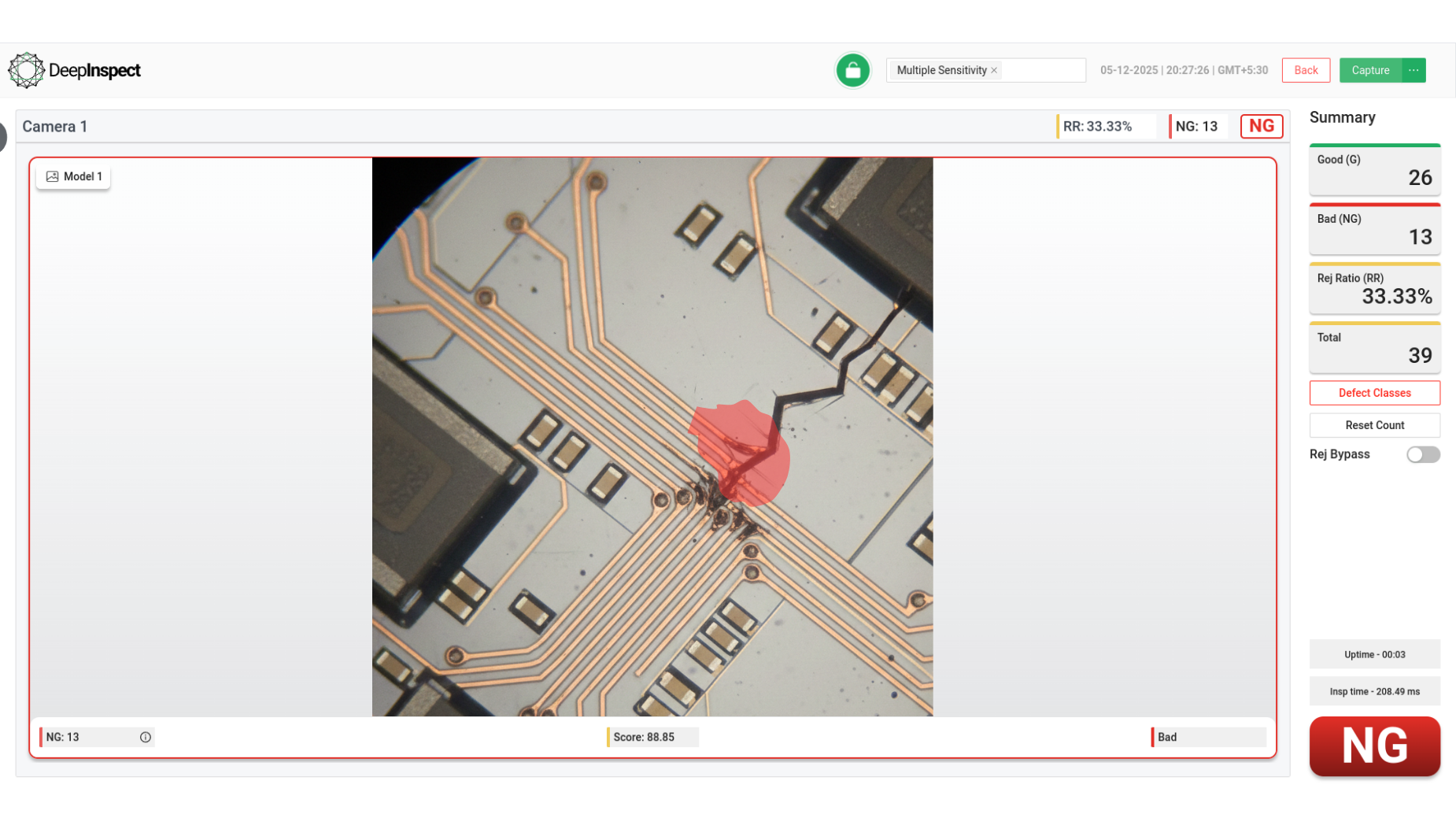

Real-time semiconductor inspection system
Best wafer scratch defect detection system
Deep Learning Wafer Inspection with 99.5% Accuracy
Why DeepInspect®
99.5% Inspection Accuracy: DeepInspect® delivers consistent, high-speed inspection accuracy of 99.5%, setting new benchmarks for reliability in automated quality control
Less Than 200 Good Images for Model Training: DeepInspect® requires fewer than 200 good images to learn, adapt, and begin accurate inspection with minimal setup effort
Model Training in Under 45 Minutes: DeepInspect® enables model creation and fine-tuning in under 45 minutes, reducing downtime and maximizing productivity
1000+PPM: High-speed inspection, detecting 1000+ parts per minute
Best Wafer Inspection System for Semiconductor Manufacturers
Our Customers
Trusted by the world’s leading manufacturers to power zero-defect production
Interested in automated visual inspection for semiconductors using AI?
Book a free demo!
Inquiry Form
Vision AI uses deep learning models to automatically detect, classify, and analyze visual defects on wafers, dies, and packages with high accuracy.
Unlike rule-based AOI, Vision AI learns from real defect images, adapts to process variations, and significantly reduces false rejects and missed defects.
It is deployed across wafer inspection, lithography layers, interconnects, die inspection, packaging, and final quality checks.
DeepInspect® stands out as the best choice, offering reliable inspection across wafers, lithography patterns, interconnects, dies, and packages.
DeepInspect® uses deep learning models trained on real production images to accurately identify surface, pattern, contamination, and process-induced defects that are difficult for rule-based systems to detect.
DeepInspect® supports inspection across wafer surfaces, lithography patterns, interconnect layers, wafer edges, dies, bond pads, and semiconductor packages.
Yes, DeepInspect® is designed for real-time inline inspection without impacting throughput or cycle time.
By detecting defects early and enabling rapid root-cause analysis, DeepInspect® prevents defect propagation and reduces scrap and rework.
DeepInspect® can be deployed rapidly, often within days, making it ideal for high-mix semiconductor production environments.
