PCB Visual Quality Inspection using DeepInspect® UHD
DeepInspect’s AI-powered PCB inspection system provides high-precision, automated PCB inspection by identifying critical defects such as soldering issues, component misalignment, surface imperfections, and foreign particles. With advanced AI visual inspection for PCB, it detects solder joint defects, ensuring reliable connections. The system also performs PCB surface inspection, pinpointing defects like scuff marks and cracks. By analyzing PCB circuit boards and components, DeepInspect ensures all parts are correctly placed and intact. Its real-time PCB inspection capability allows for fast, accurate detection of defects during the manufacturing process. By leveraging AI-based PCB inspection, the system significantly reduces false positives, enhances PCB inspection accuracy, and ensures top-tier quality assurance throughout production. DeepInspect enables automated defect detection in PCB and provides a comprehensive solution for Printed circuit board manufacturing defect detection
APPLICATION
Impact
DeepInspect’s AI-driven PCB inspection solution ensures high-precision PCB defect detection, identifying issues like PCB trace defects, dimensional inconsistencies, and surface flaws. By automating PCB visual defect detection and leveraging deep learning for PCB inspection, it enhances quality control and accelerates PCB testing, reducing defects and boosting production efficiency
Detect all kind of PCB surface defects with 99.5% Accuracy

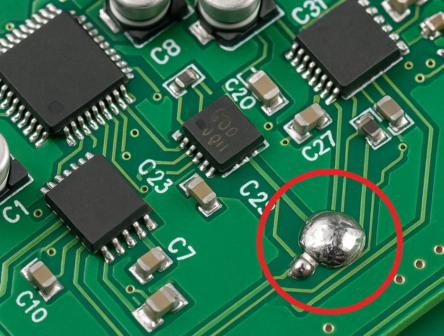

Soldering Defects on PCB

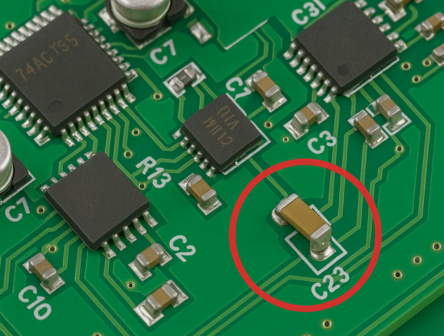

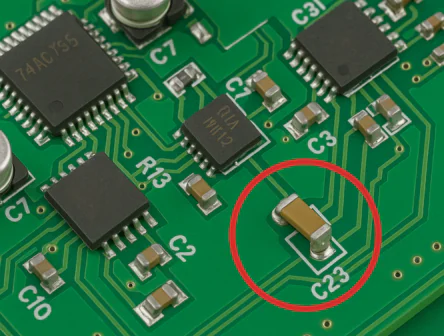

Component Misalignment

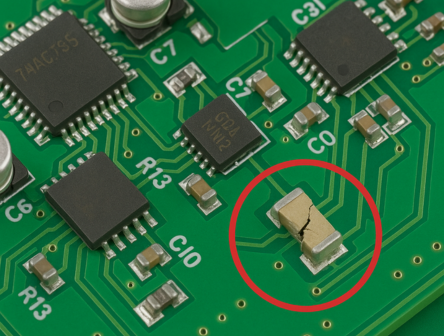

Component Damage

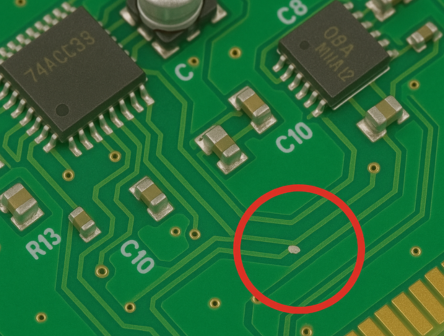

Foriegn Particles on PCB
DeepInspect®- Best Deep Learning software for PCB visual inspection
PCB inspection tool for PCB & electronics assembly
PCB inspection system for high-speed production lines
Why DeepInspect®
99.5% Inspection Accuracy: DeepInspect® delivers consistent, high-speed inspection accuracy of 99.5%, setting new benchmarks for reliability in automated quality control
Less Than 200 Good Images for Model Training: DeepInspect® requires fewer than 200 good images to learn, adapt, and begin accurate inspection with minimal setup effort
Model Training in Under 45 Minutes: DeepInspect® enables model creation and fine-tuning in under 45 minutes, reducing downtime and maximizing productivity
Line Trial in One Day: A complete line trial can be conducted at your plant within a single day
1000+PPM: High-speed inspection, detecting 1000+ parts per minute
Integrated machine vision with SMT lines for PCB inspection
Our Customers
Trusted by the world’s leading manufacturers to power zero-defect production
AOI Machine for PCB Quality Inspection
Watch the video to learn the benefits of automated optical inspection in PCB production
Interested in machine vision PCB inspection software?
Book a free demo!
Inquiry Form
DeepInspect, a leading PCB quality inspection software, uses AI-powered PCB inspection to detect common PCB defects like soldering issues, component misalignment, and surface imperfections, ensuring high-accuracy PCB inspection and enhanced quality control
As part of SwitchOn, a recognized PCB quality inspection company, DeepInspect offers high-precision PCB defect detection, identifying solder joint defects, component misalignment, and foreign particles with 99.5% accuracy.
DeepInspect’s AI visual inspection for PCB identifies soldering defects, such as cold solder joints, solder bridges, and excessive solder, using advanced PCB quality inspection software for PCB solder joint inspection.
We support Area Scan, Line Scan, and Thermal cameras. Our software is compatible with industry-standard vendors like Basler, Baumer, Allied Vision, FLIR, and others.
DeepInspect requires fewer than 200 good images for model training, significantly reducing setup time for defect detection
No. DeepInspect uses unsupervised AI, eliminating the need for NG images in training.
Model training is completed in less than 45 minutes, allowing rapid deployment of vision inspection system
A line demo for DeepInspect system can be conducted within a day, showcasing its fast implementation and ease of use
DeepInspect is ideal for industries such as automotive, electronics, and consumer goods manufacturing, providing automated quality inspection for high-precision products
